StoFloor ESD Elastic IB 510

PUR coating system, electrically conductive, crack-bridging, low-emission

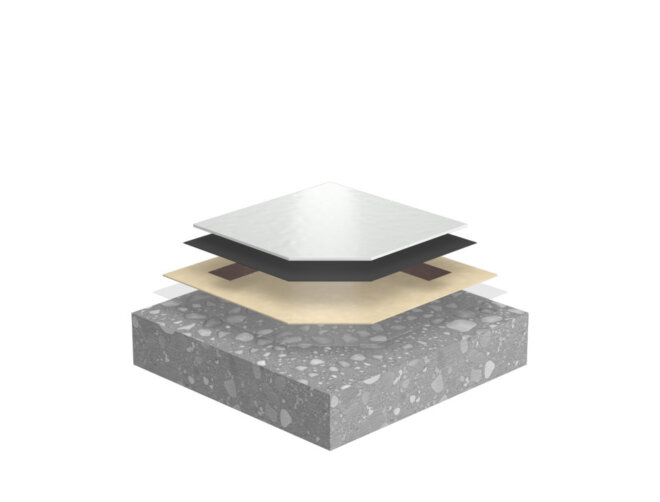

StoFloor ESD Elastic IB 510

1Primer

2Levelling filler

3Conductive layer

4Coating

5Sealing

6Quartz sand

Characteristics

Application

For ESD protection zones, for server rooms, for production areas and storage areas for electronic components

Fire behaviour

normal flammability (EN 13501-1)

Colour spectrum

RAL colour fan K 5, StoColor System, NCS, other limited colour options for StoPur WV 210

Notes

the system benefits vary depending on the conductive layer used

Sustainability

Sto sustainability data sheet

Cleaning/maintenance

Good cleanability according to StoCretec maintenance recommendations

System advantages

System resistance < 35 megohms in combination with StoPox WL 113 or StoPur WV 210, fulfils personal protection requirements even at a rated voltage > 500 V in combination with StoPox WL 118, very high colour stability

Substrate

Concrete, cement screed, calcium sulphate screed, others (on request)

Approvals/standards

Product complies with EN 1504-2, Product complies with EN 13813
