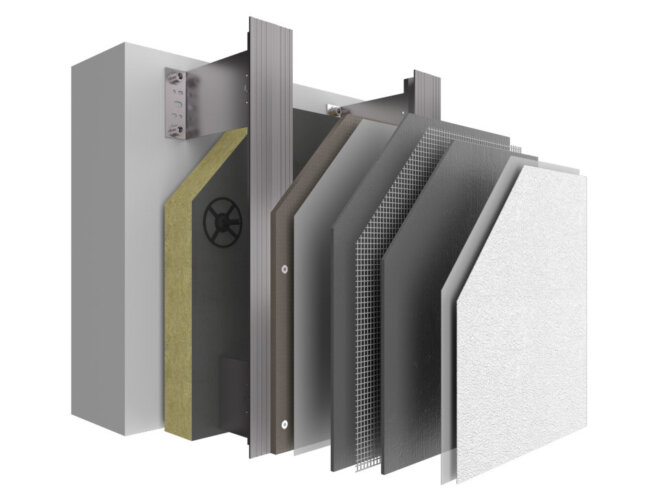

StoVentec R

complete selection of detail solutions, simple and fast installation due to light panel weight

The relevant European and/or national approvals apply.

new and existing buildings, installation limits in accordance with national building regulations, especially suitable for fine surface textures, sub-construction consisting of a wall bracket and carrier profile (StoVentro Y): large system build-ups are possible, e.g. > 60 cm, suitable for the passivhaus standard with a certified sub-construction

tintable in accordance with the StoColor System, no limitation to the light reflectance value if using an organic build-up

organic renders, silicone resin renders, renders with Lotus-Effect® Technology, mineral renders, and silicate renders in stippled render texture, rilled render texture, or as free-style textured render, can be combined with three-dimensional facade elements made of Verolith granulate

in timber frame construction with timber supporting battens, sub-construction consisting of a wall bracket and carrier profile (StoVentro Y): easily adjustable sub-construction made of a stainless steel and aluminium combination with the lowest thermal bridging coefficients

Highly resistant to mechanical stressNormal level and better

0.045 W/(m*K) and better0.042 W/(m*K) and better0.040 W/(m*K) and better0.035 W/(m*K) and better0.032 W/(m*K) and better

very light, flexible carrier board made of expanded glass granulate with a low thermal expansion coefficient, special protection against algae and fungi with a double coat of paint, optional Lotus-Effect® Technology, optional Dryonic Technology for protection against microorganisms and for fastest possible drying, sub-construction consisting of a wall bracket and vertical carrier profile (StoVentro Y): resistant to earthquakes

non-combustible

improvement of up to 12 dB (A) in the sound reduction index

masonry, e.g. brick, calcium silicate masonry units, cellular concrete, fair-faced masonry and masonry veneer, concrete and concrete slab construction (three-layer concrete slabs), timber frame construction, lightweight construction

Renderconcrete appearancemetallic

benefits in terms of building physics thanks to rear ventilation of the facade (humidity, sound and thermal protection), almost unlimited creative possibilities using colours, textures, and materials, large seamless facade surfaces possible, unevenness can be levelled by means of an adjustable sub-construction, high reliability due to system solution with matched components, sub-construction consisting of a wall bracket and vertical carrier profile (StoVentro Y): curved forms possible

Rainscreen cladding facade

mineral wool faced with nonwoven, system implementation also possible without insulation, sub-construction consisting of a wall bracket and carrier profile (StoVentro Y): large insulant thicknesses possible
