StoVentec G

Old and new buildings, suitable for passive house standard thanks to certified substructure, large system structures (e.g. > 60 cm) possible

Substructure consisting of wall bracket and support profile (StoVentro Y): easily adjustable substructure made of a combination of stainless steel and aluminium with the lowest thermal bridge coefficients, in timber construction with timber base battens

Class B1 in accordance with DIN 4102-1, flame-retardant, fire barriers may be required in accordance with national regulations

Wide range of colours - RAL colours, screen printing, logos etc., no limit to the lightness value

Smooth, glossy surface with depth effect made of toughened safety glass, can be combined with plastic façade elements made of Verolith granulate

0.045 W/(m*K) and better0.042 W/(m*K) and better0.040 W/(m*K) and better0.035 W/(m*K) and better0.032 W/(m*K) and better

glass

high mechanical load capacitynormal and better

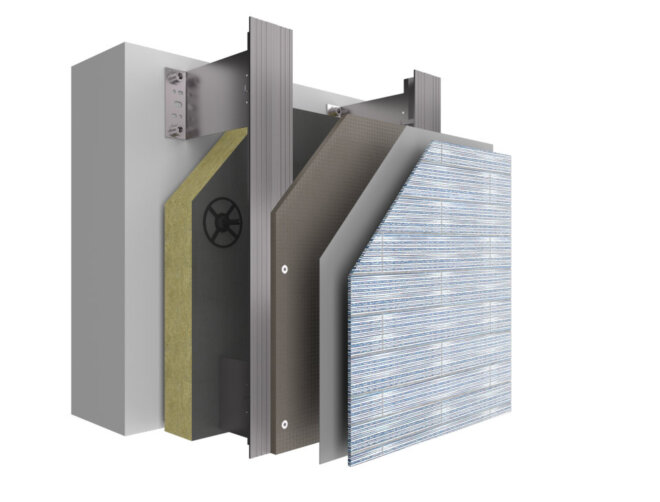

Curtain-type, rear-ventilated façade

for the decorative design of individual glass surfaces, high-quality appearance, dirt-resistant, smooth surface - low maintenance costs with regard to cleaning, building physics advantages due to rear ventilation of the façade (moisture, sound and summer heat insulation), compensation of unevenness due to variable substructure, lowest thermal bridge coefficients due to own substructure made of a stainless steel/aluminium combination, passive house-certified, thermal bridge-free substructure possible, highly weather-resistant, very high crack resistance

Masonry such as brick, sand-lime brick, aerated concrete, exposed and facing brickwork, concrete, panelled construction (three-layer panels), timber construction

Extensive detailed solutions, quick installation

Fleece-laminated mineral wool

The respective national approvals apply.
