StoVentec C

complete selection of detail solutions, fast installation

The relevant European and/or national approvals apply.

new and existing buildings, installation limits in accordance with national building regulations, sub-construction consisting of a wall bracket and carrier profile (StoVentro Y): large system build-ups are possible, e.g. > 60 cm, suitable for the passivhaus standard with a certified sub-construction

extensive selection of colours, see e.g. brick range

brick slips, ceramics, can be combined with three-dimensional facade elements made of Verolith granulate

sub-construction consisting of a wall bracket and carrier profile (StoVentro Y): easily adjustable sub-construction made of a stainless steel and aluminium combination with the lowest thermal bridging coefficients, in timber frame construction with timber supporting battens

highly resistant to mechanical stress

0.045 W/(m*K) and better0.042 W/(m*K) and better0.040 W/(m*K) and better0.035 W/(m*K) and better0.032 W/(m*K) and better

class A2-s1, d0 in accordance with EN 13501-1 on metal sub-construction, in the defined build-up and area in accordance with the classification report, class B-s1, d0 in accordance with EN 13501-1 on timber sub-construction, in the defined build-up and area in accordance with the classification report, fire barriers may be required in accordance with national specifications

masonry, e.g. brick, calcium silicate masonry units, cellular concrete, fair-faced masonry and masonry veneer, concrete and concrete slab construction (three-layer concrete slabs), timber frame construction

ceramics

benefits in terms of building physics thanks to rear ventilation of the facade (humidity, sound and thermal protection), unevenness can be levelled by means of an adjustable sub-construction, lowest thermal bridging coefficient due to bespoke sub-construction made from a combination of stainless steel and aluminium, passivhaus-certified sub-construction possible that is free from thermal bridges, highly weather-resistant, very high crack resistance

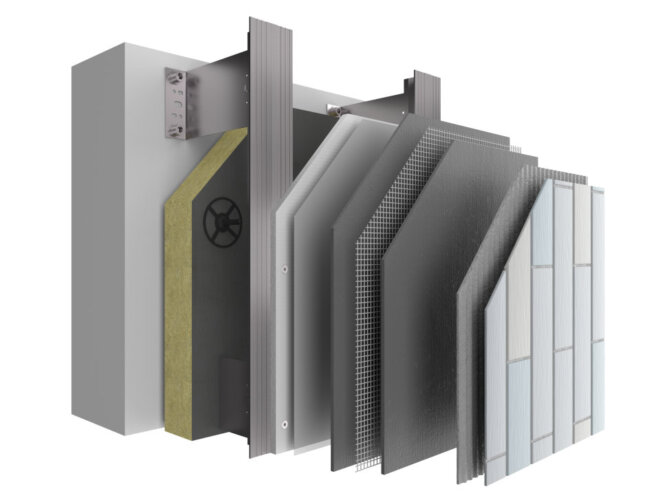

Rainscreen cladding facade

mineral wool faced with nonwoven, thick insulant layer possible, system implementation also possible without insulation
