StoTherm PIR

Slimline external thermal insulation composite system with a wide range of materials

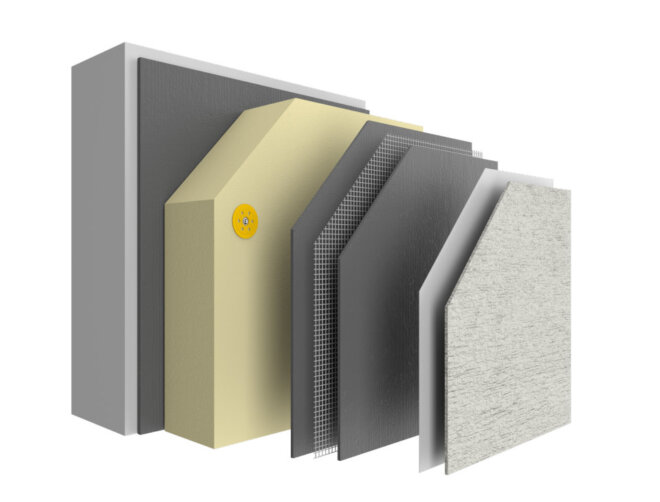

StoTherm PIR

1Bonding

2Insulation

3Fixing

4Plastering

5Reinforcement/armouring

6Intermediate coating

7Top coat

Characteristics

Application

Old and new buildings, suitable for buildings according to the lowest energy standard

Fastening

Bonding, gluing and dowelling

Fire behaviour

Flame retardant

Colour spectrum

Limited tinting according to StoColor system, lightness value ≥ 20

Design options

Organic and silicone resin plasters as well as plaster with Lotus-Effect® Technology in scratch and grooved plaster texture or as modelling plaster

Lambda max.

0.026 W/(m*K) and better0.032 W/(m*K) and better0.035 W/(m*K) and better0.040 W/(m*K) and better0.042 W/(m*K) and better0.045 W/(m*K) and better

Surface material

Facade plaster

Impact resistance

Mechanically resilient

Impact resistance

normal and better

System type

External thermal insulation composite system

System advantages

Slim system structure with high insulation performance, slim system structures in confined spaces, sustainable insulation material with pure life® eco-label, architectural design freedom, especially for listed buildings, high resistance to microorganisms (algae and fungi), highly weather-resistant, water vapour and CO2 permeable

Substrate

Masonry such as brick, sand-lime brick, aerated concrete, concrete, panelled construction (three-layer panels)

Processing

Can be applied by machine, Stop & Go technology, no colour coat required for organic finishing coats, special protection against algae and fungi thanks to a double colour coat

Further properties

Lotus-Effect® Technology optional

Thermal insulation

Thermal insulation board made of polyisocyanurate rigid foam up to 300 mm

Approvals/standards

The respective national approvals apply.
