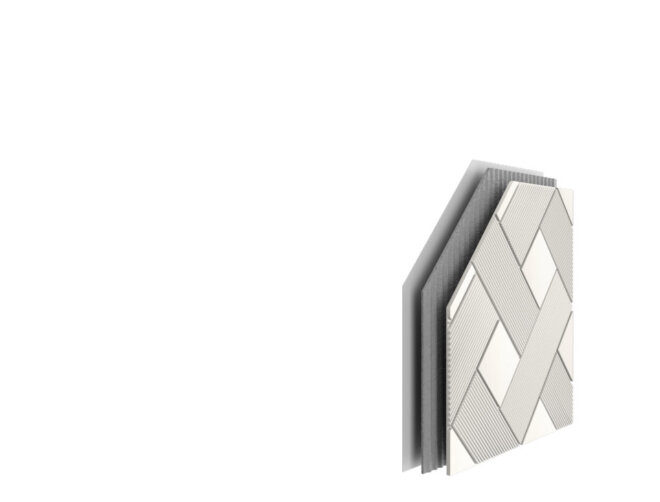

Cladding system StoEcoshape

outside

Bonding with Sto adhesive and joint mortar

according to Architectural Colours colour fan, other colours available on request

according to customer specifications, colour shade: solid colours or up to two mixed colours, texture: smooth, rough, regular, irregular or a combination of two textures (e.g. rolled and comb texture), aggregates: up to two different toppings (e.g. natural sand mixtures or silica sand), colour shade: solid colours or up to two mixed colours, texture: smooth, rough, regular, irregular or a combination of two textures (e.g. rolled and comb texture). e.g. natural sand mixtures or silicon carbide), special textures and aggregates on request, min. length 30 mm, max. length 840 mm, min. width 30 mm, max. width 420 mm, min. thickness 4 mm, max. thickness 8 mm, special dimensions on request

Prefabricated corner elements are available on request depending on the format

High mechanical load-bearing capacity

Shape, texture and colour can be customised according to customer requirements, bonding and grouting with one product, installation on curved surfaces possible

External thermal insulation composite systems, ventilated rainscreen cladding systems or solid substrates

Glue and grout the prefabricated plaster elements directly onto the system reinforcement; no additive application of mortar is required for grouting. Only use a flat brush to smooth the Sto adhesive and jointing mortar applied during bonding in the joints.

The respective national approvals apply.
