StoConcrete Steel Plate

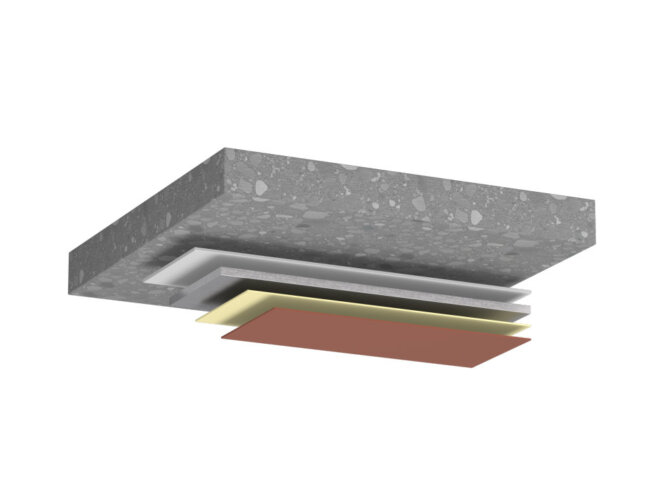

Reinforcement of concrete structures by gluing on steel lugs or steel lug brackets, to increase or restore the load-bearing capacity, to create a shear-resistant bonded connection, to increase the bending load-bearing capacity of reinforced and prestressed concrete components with steel lugs, to increase the shear load-bearing capacity of reinforced and prestressed concrete components with steel lug brackets

Bonding to the prepared substrate

depending on the StoColor System coating selected

Coating with coloured surface protection system, fine levelling with subsequent coating, cladding, e.g. with fire protection cladding

Dimensioning software for Sto S&P FRP systems, advice on planning and dimensioning from S&P Clever Reinforcement GmbH

System tested by building authorities, economical, efficient, visually unobtrusive structural reinforcement, can be combined with structural reinforcement made of carbon fibre

concrete

Glue the steel tabs or steel tab brackets to the prepared concrete surface and, if necessary, anchor according to structural requirements

Z-36.1-87 StoGB System 1, EN 1504-9 Repair principle 4 according to method 4.3, DAfStb guideline Reinforcement of concrete components with bonded reinforcement (March 2012 edition)
